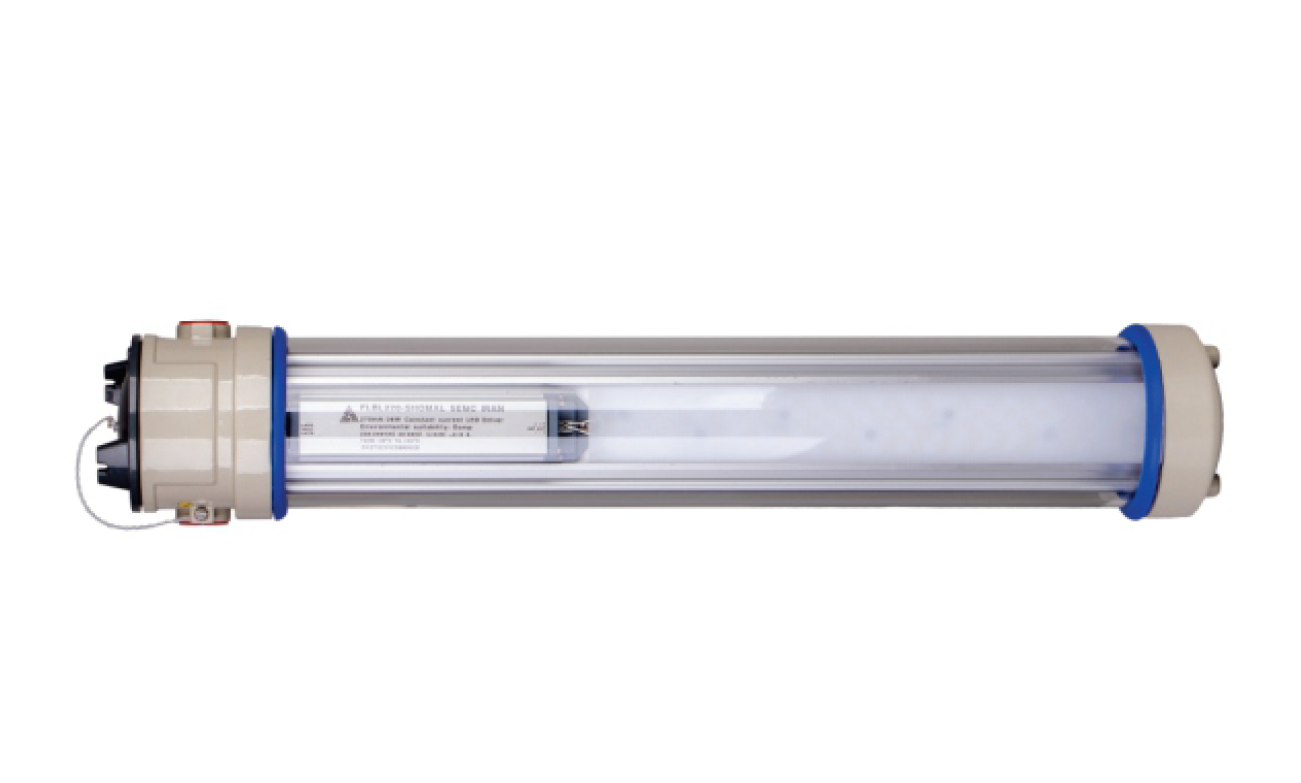

Type : FLB 220
Marking : II 2G Ex db IIC T6 Gb
II 2D Ex tb IIIC T85°C Db
Standards : EN 60079-0:2018; EN 60079-1:2014
EN 60079-31:2014
EU-Type Examination Certificate No : IMQ 20 ATEX 001X
Degree of Protection : IP 66
Enclosure Material : Cooper Free Aluminum
Enclosure Color : Grey RAL 7032 (Body), RAL 7043 (Cover)
Protective Cover/Bowl : Borosilicate Glass
Permissible Ambient Temperature : -30°C to +55°C
Entries : Direct Entries, 2* M20
(Other threads are available on request )
Weight : Approx. 5.4 kg
Mounting Type : Galvanized steel pole mounting bracket suitable for pipe
1 ½ with necessary galvanized steel bolts and nuts
(Other mounting brackets are available on request)Earth Stud : External M5 Earth Stud
Rated Voltage : 220/240VAC
Power Factor : > 0.95
Power Consumption(+ 10 %) : 36 W
Frequency : 50/60 Hz
Rated Current : 0.16 A
EMC Protection : Yes
Over-Voltage Protection : 2.5 KV
Starting Time (at 230 V,50 Hz) : 1.8 S (Warm Start)
Connecting Terminal : SERIES 166ST/BU ( L, N, PE ) 0.5 mm 2 – 2.5 mm2
3 pole 16A single plugs & socketsLamp Cap : G13: for T8 Bi-Pin lamps according to IEC 60081
Light Source (Lamp) : T8 Bi-Pin Fluorescent Tubes
Light Source (Ballast) : Electronic Ballast (EEI A2)
Operating Condition : Indoor/Out door
